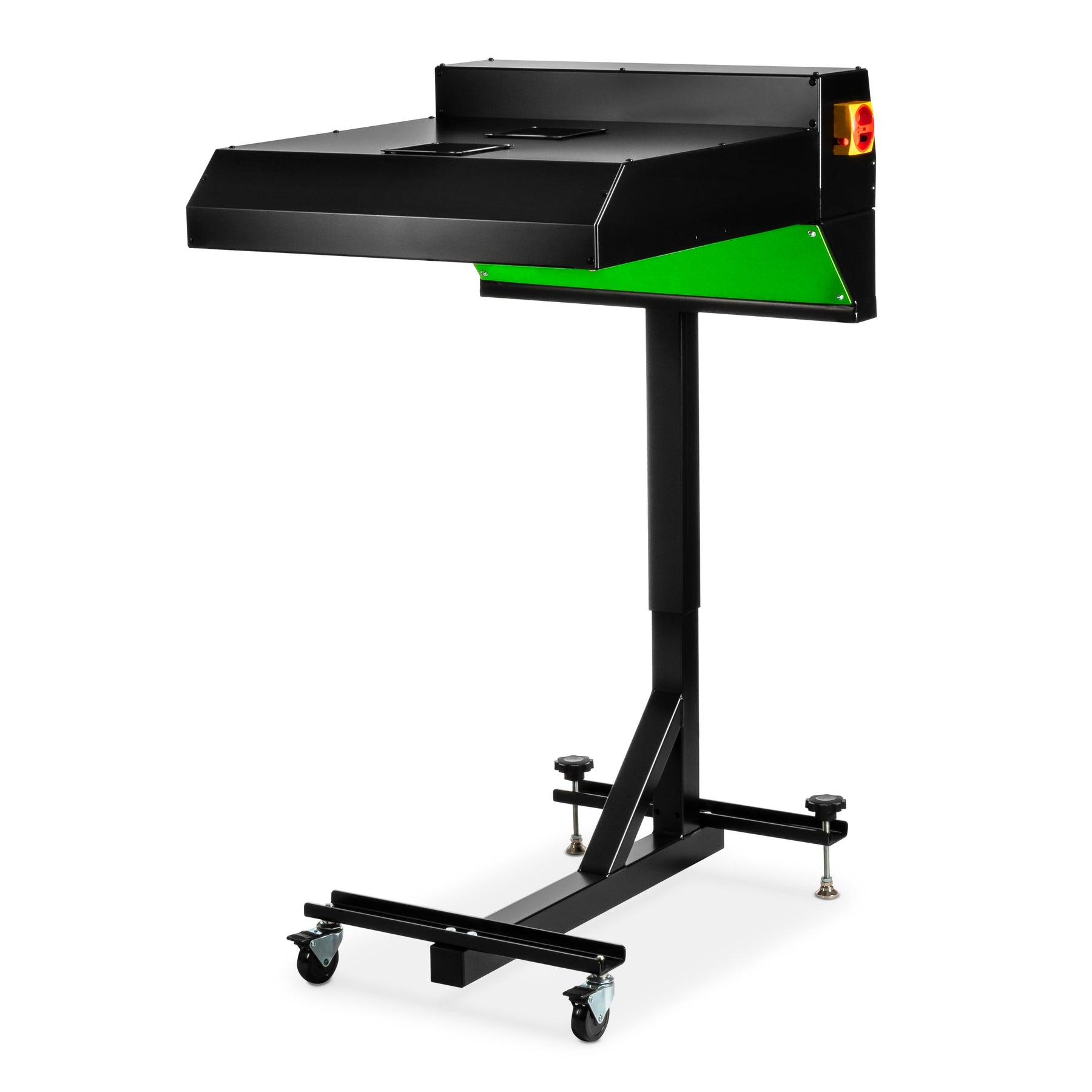

Name: Riley Flash Quartz Dryer 18"x18"
Brand: Riley Hopkins
SKU: FDQZ-18X18
Price: 2995.95 USD
Availability: InStock

Riley Flash Quartz Dryer 18"x18" | Screenprinting.com

Order your Riley Hopkins equipment at ScreenPrinting.com

The Riley Flash Quartz Dryer is a professional-grade flash cure unit engineered for screen printers who demand speed, consistency, and precision. Powered by quartz tube heating technology, this dryer delivers rapid on-off responsiveness, making it ideal for high-efficiency shops and sensitive fabrics. With advanced heat control and fast recovery times, the Riley Flash Quartz Dryer ensures reliable gelling without over-curing or scorching garments.

QUARTZ VS INFRARED

Faster Heat-Up Time: Quartz flashes can reach curing temperature in under a second, reducing wait times and allowing for quicker cycle speeds on the press.
Energy Efficiency: Because of the fast on-off cycling, quartz flashes consume less energy overall, especially in setups where the flash is idle between prints.
Precise Heat Control: Quartz flashes deliver more targeted and consistent heat, which is critical for delicate fabrics or thinner substrates that can be scorched by traditional IR units.
Cooler Work Environment: Since quartz units cool rapidly when not in use, they release less ambient heat, contributing to a more comfortable shop climate.
Ideal for High-Speed Automatic Presses: Their quick cycling and consistency make quartz flashes perfect for high-volume, automated setups where timing and control are crucial.

FEATURES

Lock-Out Style Disconnect Switch: Panel-mounted for secure and safe power isolation during maintenance
Digital Timer: Precisely control your exposure or curing times for consistent results
Dual Zone Power Control: Two switches control front and rear 3-bulb heating zones independently
Forced Air-Assist: Enhances heat penetration and speeds up curing time
Dual Activation: Choose between motion sensor or foot pedal operation for hands-free convenience
Adjustable Heating Panel Height: Set heating element from 35” to 45” from the floor to suit your setup
Quick Height Adjustment: Easy-to-use knobs make raising or lowering the panel fast and tool-free
Locking Casters & Levelers: Two locking swivel casters and two leg levelers keep the unit stable and mobile
Grab Handle: Designed for easy relocation around your shop
10-Foot Power Cord: Long reach for flexible placement (plug not included)
Quartz Bulb Warranty: 1-year coverage for the heating elements
Limited Lifetime Dryer Warranty: Coverage for the main dryer structure and components
Made in USA 🇺🇸: Built with pride to deliver long-term durability and performance

PRODUCT SPECS

Length: 30.5”
Hood Width: 24”
Overall Width: 25”
Min Overall Height: 42.5”
Max Overall Height: 53”
Number of Bulbs: 6
Bulbs per Zone: 3
Heater Dimensions: 18” x 18”
Voltage: 208/240
Wattage: 6000/7800
Amperage: 28.8/32.5
Recommended Plug Type: NEMA L6-30 / NEMA 6-50P

PRODUCT DATA SHEETS

Manual

ORDER AT SCREENPRINTING.COM
